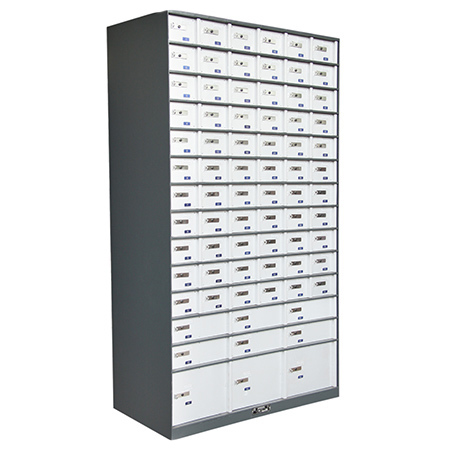

Safe Deposit Lockers
Safe Deposit Lockers
Guardwel Safe Deposit Lockers, are manufactured in compliance to IS 5244 to resist the ever improving modern attack techniques. All the sides of lockers are made of prime quality tested steel plates. The thick front plate of SDL door provides solid protection to the locks fitted behind it. All the components of SDL are subjected to a 5-zone 8-stage special surface treatment process.
Guardwel’s 7-lever dual control lock, manufactured In-house ensures complete protection of the locker. For additional security, a renter lock or haps & staple for pad locking can be provided at an extra cost. Guardwel also provides non-standards sizes of lockers, or a standard locker split into horizontal or vertical parts to make optimum utilization of space. Tested for burglary attack as per IS 5244.
Technical Specifications
| External dimentions 2000 mm H x 1100mm W x 575 D | ||||||||
| Model | As per BIS | Lockers | Internal Dimentions | Net WT in Kgs. | ||||
| Type | Size | No | H | W | D | |||
| SDL-90 | Type 1A | A | A | 90 | 115.5 | 180.5 | 503 | 715 |
| SDL-75 | Type 1 | A | A | 66 | 115.5 | 180.5 | 503 | 695 |
| 2A | C | 6 | 115.5 | 361.5 | 503 | |||
| 4A | F | 3 | 265.5 | 360 | 503 | |||
| SDL-60 | Type 2B | B | B | 60 | 148.5 | 216.5 | 503 | 655 |
| B | B | 46 | 148.5 | 216.5 | 503 | |||
| SDL-51 | Type 2A | 2B | E | 2 | 148.5 | 434 | 503 | 650 |
| 4B | H | 2 | 318 | 434 | 503 | |||
| 2B1 | H1 | 1 | 318 | 216.5 | 503 | |||
| SDL-45 | Type 2A | C | C | 45 | 115.5 | 361.5 | 503 | 605 |
| SDL-40 | D | D | 40 | 179 | 271 | 503 | 605 | |
| Type 3 | D | D | 28 | 179 | 271 | 503 | 550 | |
| SDL-32 | 2D | G | 2 | 179 | 542.5 | 503 | ||
| 4D | K | 2 | 395 | 542.5 | 503 | |||
| SDL-21 | Type 4A | F | F | 21 | 265.5 | 361.5 | 503 | 505 |
| SDL-20 | G | G | 20 | 179 | 542.5 | 503 | 505 | |
| SDL-10 | Type 4D1 | K1 | K1 | 10 | 375 | 542.5 | 503 | 455 |
